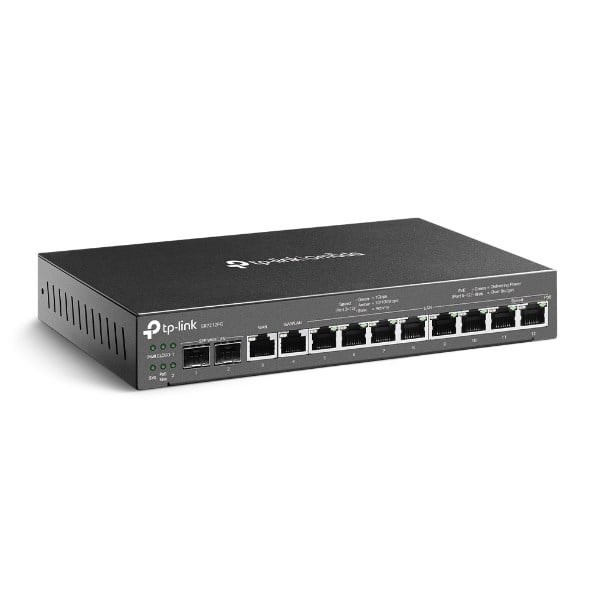

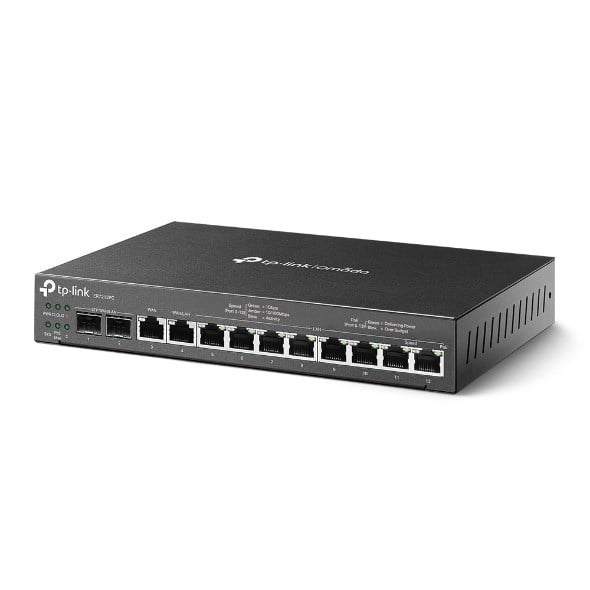

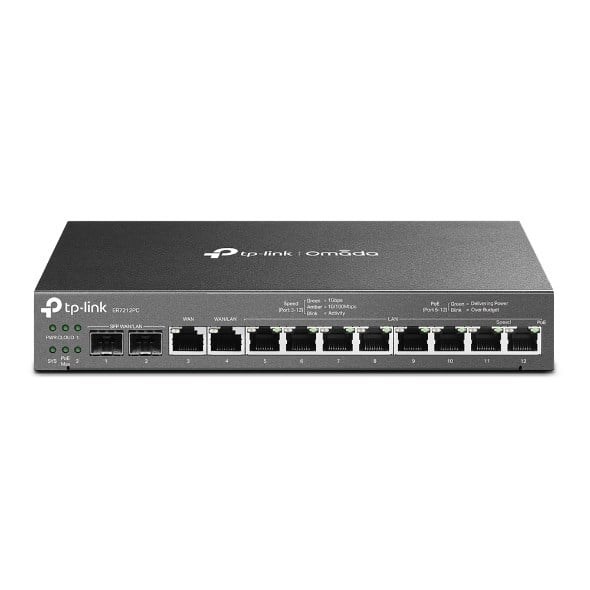

TP-LINK ER7212PC Gigabit Omada 3'ü 1 Arada VPN Yönlendirici (Router) (BIO-9515-210240483)

0.0

Marka : BİOSİS

Fiyat : ₺21.765,40 + KDV

KDV Dahil : ₺26.118,48

Barkod : 4897098688717

₺6.529,62 `den başlayan taksitlerle

Adet :

Tavsiye Et

Yorum Yaz

ER7212PC

3'ü 1 Arada Router: Router, PoE+ çıkışı ve Omada merkezi yönetim özelliğini bir araya getirir. 10 adede kadar EAP merkezi olarak yönetilebilir.
Profesyonel Donanım: 1GB DDR3 belleğe sahip Çift Çekirdekli CPU, 12× Gigabit bağlantı noktasına kadar mükemmel performans sağlar.
4×'e kadar WAN Ethernet Bağlantı Noktası: 2× Gigabit SFP WAN/LAN portu**, 1× Gigabit RJ45 WAN portu ve 1× Gigabit RJ45 WAN/LAN portu ile donatılmıştır.
110W PoE Bütçesi: 8 × 802.3at/af uyumlu PoE+ RJ45 LAN bağlantı noktaları toplam 110W* güç kaynağı sağlar.
Merkezi Yönetim: Bulut erişimi ve Omada uygulaması, büyük bir konfor ve kolay yönetim sunar.
Yüksek Güvenlikli VPN: IPsec VPN, OpenVPN ve L2TP/PPTP VPN bağlantılarını destekler.
Kolay Kurulum: Masaüstü ve duvar montajı için fansız ve kompakt tasarım.

GÜVENLİK
Access Control	Source/Destination IP Based Access Control
Filtreleme	URL Filtering
ARP Denetleme	-
Saldırı Koruması	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

DONANIM ÖZELLİKLERİ
Standartlar ve Protokoller	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
Arabirim	• 2 Gigabit SFP WAN/LAN ports • 1 Gigabit WAN port • 1 Gigabit LAN/WAN port • 8 Gigabit LAN ports
Ağ Medyası	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Sayısı	Fanless
Buton	Reset Button
Güç Kaynağı	53.5VDC/2.43A Adapter
PoE Budget	8 ports PoE+ output, 110 W PoE Budget
Flash	8Mb Nor + 4 GB EMMC
DRAM	1 GB DDR3
LED	PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Boyutlar ( W X D X H )	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Koruma	4 kV surge protection
Muhafaza	Steel
Montaj	Desktop/Wall-mount
Maks. Güç Tüketimi	• 133.2W with PoE Max • 13.88W without PoE

PERFORMANS
Eşzamanlı Oturum	24,980
New Sessions /Second	1,900
NAT (Static IP)	935.5 Mbps / 942.1 Mbps
NAT(DHCP)	940.2 Mbps / 941.7 Mbps
NAT(PPPoE)	913.1 Mbps / 935.2 Mbps
NAT (L2TP)	545.0 Mbps / 912.7 Mbps
NAT (PPTP)	523.0 Mbps / 912.8 Mbps
IPsec VPN Throughput	AES256: 168.5 Mbps
OpenVPN	34 Mbps
L2TP VPN Throughput	• Unencrypted: 845.3 Mbps • Encrypted: 333.2 Mbps
PPTP VPN Throughput	• Unencrypted: 1012.6 Mbps • Encrypted: 401.4 Mbps
66 Byte Packet forwarding rate	154,069 pps / 156,977 pps
1,518 Byte Packet forwarding rate	81,193 pps / 81,193 pps

TEMEL FOKSİYONLAR
WAN Bağlantı Türü	• Static IP • Dynamic IP • PPPoE • PPTP • L2TP
MAC Klon	Modify WAN MAC Address
DHCP	• DHCP Server • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
IPv6	support
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy

GELİŞMİŞ FONKSİYONLAR
ACL	IP/Port/Protocol/Domain Name Filtering
Gelişmiş Yönlendirme	• Static Routing • Policy Routing
Bandwidth Kontrol	IP/Port-based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup • Online Detection
NAT	• Multi-Net NAT • Virtual Server • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Session Limit	IP-based Session Limit

VPN
SSL VPN	-
IPsec VPN	• 20 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • SHA1, SHA2 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10)§ • 16 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10)§ • 16 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (10)§ • 16 OpenVPN Tunnels

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password • Hotspot (Local User / Voucher / SMS / Radius) • External Radius Sever • External Portal Sever

YÖNETİM
Omada App	Yes
Centralized Management	Management of up to 2 Omada switches, and 10 Omada access points
Cloud Access	Yes
Servis	Dynamic DNS (Dyndns, No-IP)
Bakım	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Syslog Support
Zero-Touch Provisioning	-
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • Management of up to 2 Omada switches and 10 Omada access points

DİĞERLERİ
Sertifika	CE, FCC, RoHS
Paket İçeriği	• ER7212PC • Power Adapter • Power Cord • Quick Installation Guide
Sistem Gereksinimleri	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 • MAC OS, NetWare, UNIX or Linux
Ortam	• Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing

Havale ile Ödeme ₺21.765,40 + KDV

Kredi Kartı Tek Çekim ₺21.765,40 + KDV
