MSI PRO H610M-E DDR5 M2 PCIe NVME HDMI PCIe 16X v4.0 1700p mATX
MSI PRO H610M-E DDR5 M2 PCIe NVME HDMI PCIe 16X v4.0 1700p mATX
MSI PRO H610M-E DDR5 M2 PCIe NVME HDMI PCIe 16X v4.0 1700p mATX
MSI PRO H610M-E DDR5 M2 PCIe NVME HDMI PCIe 16X v4.0 1700p mATX
MSI PRO H610M-E DDR5 M2 PCIe NVME HDMI PCIe 16X v4.0 1700p mATX

MSI PRO H610M-E DDR5 M2 PCIe NVME HDMI PCIe 16X v4.0 1700p mATX (44940)

0.0
Marka : MSI
Fiyat : ₺4.284,00  + KDV
KDV Dahil : ₺5.140,80
Barkod : 4711377125147
₺1.285,20 `den başlayan taksitlerle
Adet :
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
ChipsetINTEL H610

CPUSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

Memory2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 5600 MHz (by JEDEC & POR)
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Onboard Graphics1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
1x D-Sub
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot1x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)

AudioRealtek® ALC897 Codec
7.1-Channel High Definition Audio

Storage1x M.2 (Qty)
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

USB4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)

LANRealtek® RTL8111H Gigabit LAN

Internal IO1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports

LED FEATURE4x EZ Debug LED

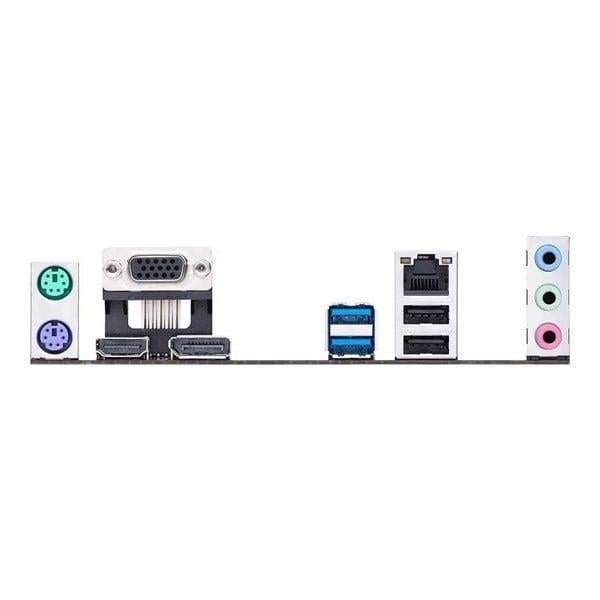

BACK PANEL PORTS

  1. HDMI™
  2. VGA
  3. Keyboard / Mouse
  4. USB 3.2 Gen 1 5Gbps (Type-A)
  5. LAN port
  6. Audio Connectors
  7. USB 2.0
  8. USB 2.0




OPERATING SYSTEM



Support for Windows® 11 64-bit, Windows® 10 64-bit

https://storage-asset.msi.com/datasheet/mb/tr/PRO-H610M-E.pdf
